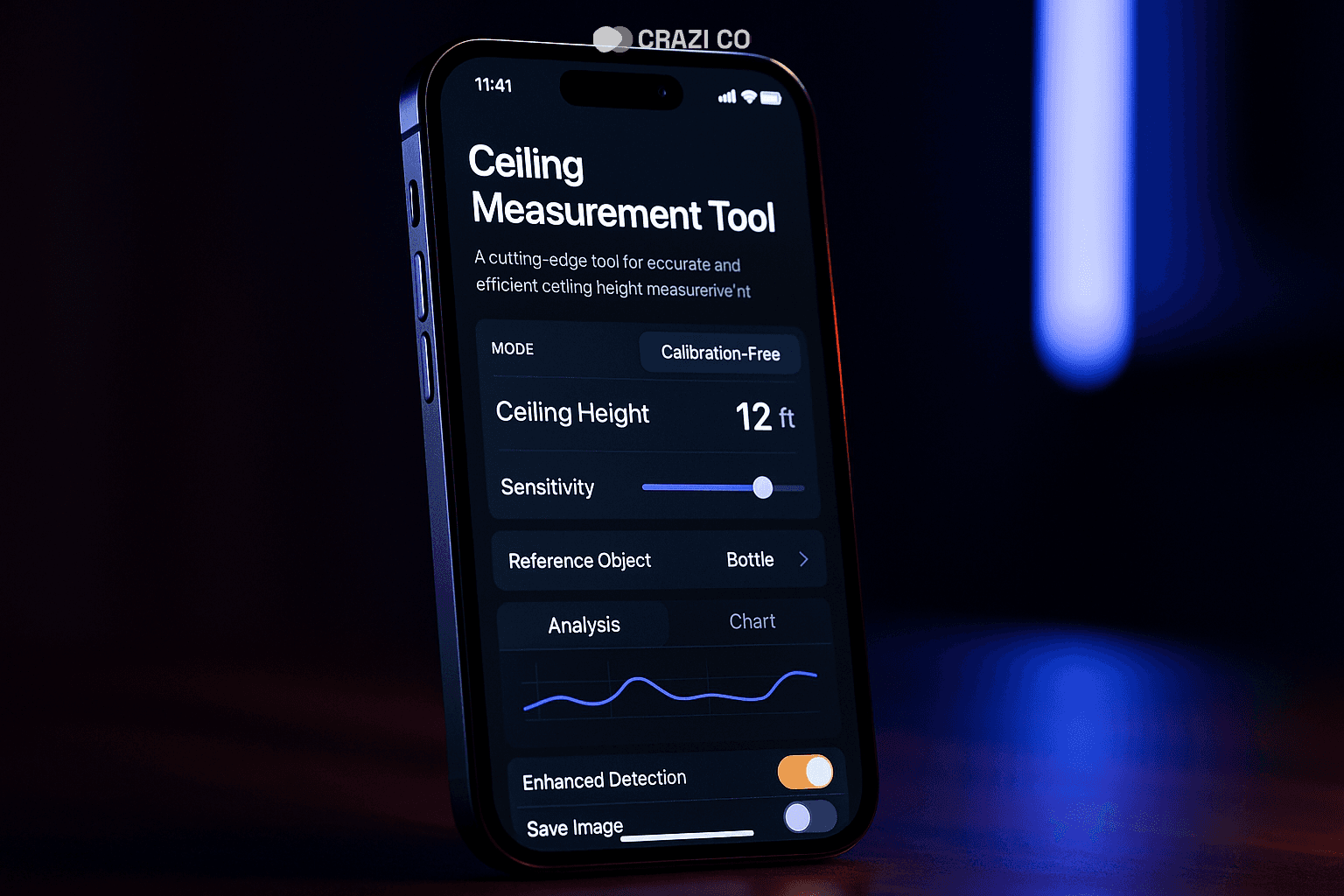

An innovative camera-based tool designed for precise ceiling height measurement without the need for laser instruments, powered by YOLOv8 image analysis.

Project Description

The Advanced Ceiling Measurement System is a sophisticated software solution tailored for industrial automation companies, particularly those focused on warehouse operations. This project addresses the necessity for an efficient, accurate, and non-invasive method of measuring ceiling heights, a task traditionally done using manual laser instruments. By leveraging cutting-edge YOLOv8 image analysis technology, this tool provides a seamless camera-based solution that simplifies the measurement process significantly.The primary users of this system are companies that require frequent and precise measurements in large-scale operational environments like warehouses. The system is designed to be user-friendly, incorporating both calibration-assisted and calibration-free modes to cater to diverse operational needs. This dual-mode functionality ensures adaptability and convenience for varied measurement situations.Beyond its remarkable accuracy in height measurement, the tool's benefits encompass significant time savings, reduced manual labor, and enhanced safety by eliminating the need for personnel to physically access high areas. With its real-time data analysis and easy integration into existing systems, the Advanced Ceiling Measurement System not only improves operational efficiency but also contributes to strategic decision-making processes in asset management.The project combines advanced computer vision models with robust engineering to deliver a reliable solution for industrial applications. By doing so, it brings technological innovation directly to the user's fingertips, enhancing productivity and offering a competitive edge in automation and operational management.

Scope of Work

The project's scope was driven by the client's need to optimize and innovate the way ceiling heights are measured in industrial environments, particularly warehouses. Traditional methods relied heavily on manual labor involving laser instruments, posing challenges such as inefficiency, safety risks, and increased operational costs. The goal was to create a solution that could streamline this process while enhancing accuracy and reducing dependency on specialized equipment.Key challenges included developing a computer vision system capable of accurately detecting ceilings, floors, and propellers from images. This required comprehensive image data annotation, model training, and algorithm design to ensure precision in pixel-to-metric conversions. Additionally, versatility was vital; thus, the solution needed to support both calibration-assisted workflows, where measurements could be refined using a known object, such as a Coca-Cola bottle, and calibration-free workflows, which estimate height based on object proportions and bounding box logic.The scope also encompassed ensuring the solution's scalability and adaptability, making it suitable for different operational environments and easy integration with existing infrastructure. By addressing these challenges, the project aimed to significantly enhance efficiency and safety in ceiling height measurement tasks, ultimately delivering a vital tool for the client's automation portfolio.

Our Solution

The implemented solution is an AI-powered tool designed to overcome the challenges of traditional ceiling measurement techniques. At its core, the tool utilizes YOLOv8, an advanced object detection framework, alongside Python to achieve precise ceiling, floor, and propeller detection. This powerful combination fosters robust image analysis, enabling the system to function effectively across various warehouse settings.The solution features a meticulously designed algorithm that transforms pixel data into accurate metric measurements. This is crucial for providing real-time, on-the-spot data that users can rely on for immediate decision-making. One of the unique aspects is its dual-mode operation, allowing users to choose between a calibration-assisted mode, which uses a recognizable object for fine-tuning measurements, and a non-calibrated mode that relies on sophisticated logic to estimate dimensions correctly.To facilitate seamless operation, the tool employs a Roboflow-assisted image annotation pipeline, ensuring high-quality data input, crucial for model training and accuracy. Furthermore, the solution is not confined by rigid infrastructure requirements, making it highly adaptable and convenient for varying operational needs. The integration of advanced technology within the tool provides significant enhancements in speed, accuracy, and user safety, presenting a transformative approach to ceiling measurement in industrial settings.

Key Features

• YOLOv8-based Object Detection: Leverages the YOLOv8 framework for precise detection of ceilings, floors, and propellers, ensuring accurate measurement through advanced image analysis.

• Calibration and Non-Calibration Modes: Offers flexibility with two modes: a calibrated mode using known objects for accuracy, and a non-calibrated mode for rapid on-the-go estimations.

• Real-Time Height Data Analysis: Transfers pixel data into real-time metric measurements, providing immediate feedback for operational decisions, enhancing speed and efficiency.

• Roboflow-Assisted Image Annotation: Utilizes a sophisticated pipeline for image annotation, improving the model training process and enhancing the overall accuracy of the system.
